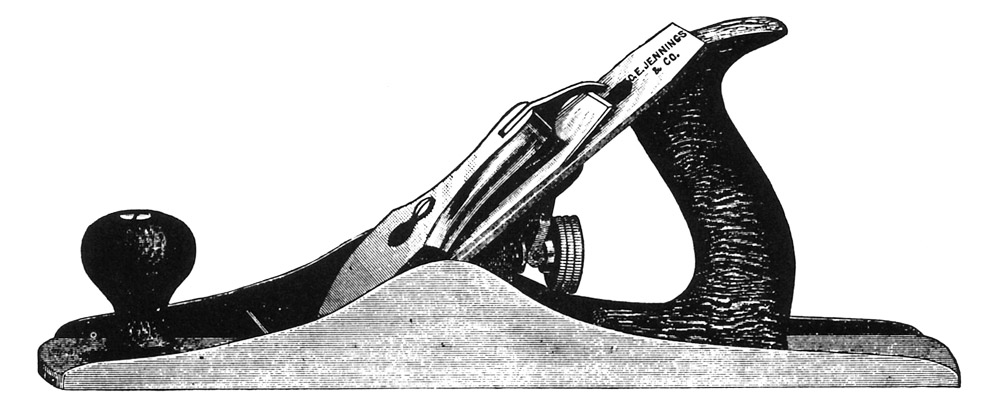

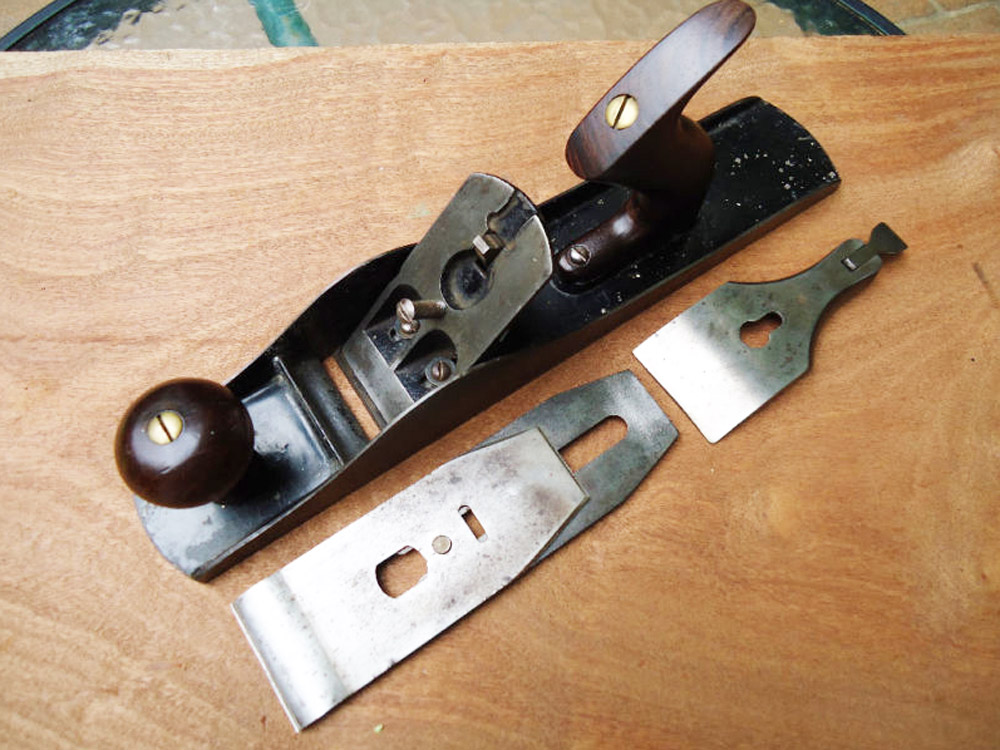

C.E. Jennings Steers Patent No. 305 Jack Plane
as illustrated in an 1890 Price List.
C. E. JENNINGS & CO.
STEER’S PATENT ADJUSTABLE IRON PLANES
With Composite Bottom.
Our New Patented Iron Plane is offered to the trade and to the public as the only plane ever yet made that has successfully met the great objection to Iron Planes, viz. : the clinging of the Plane when in use to the work.

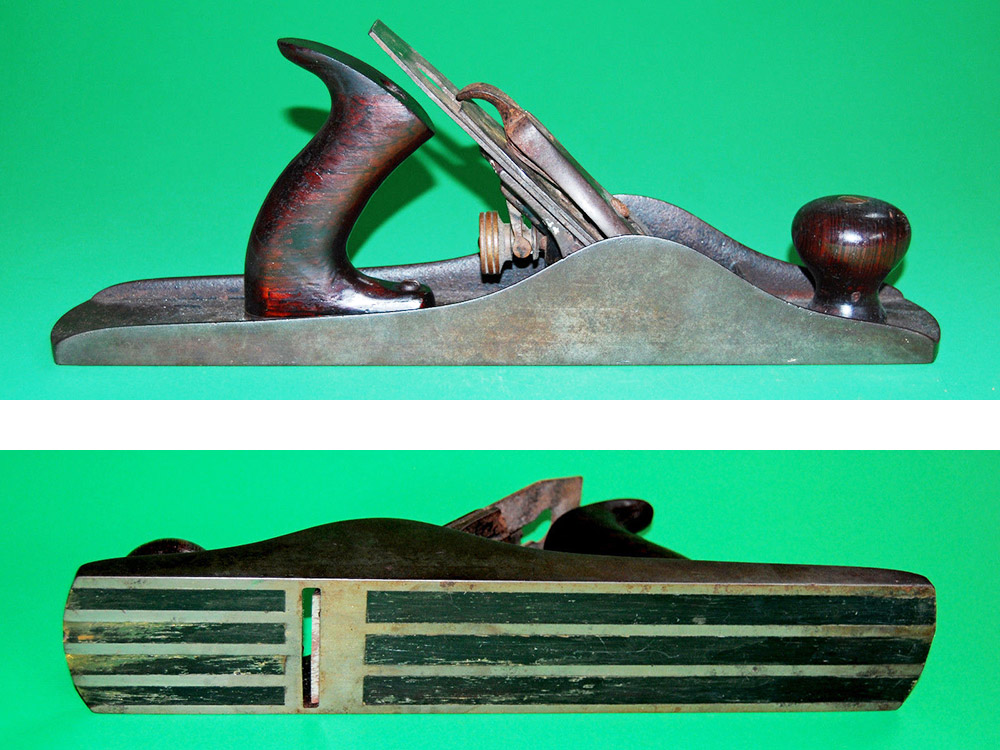

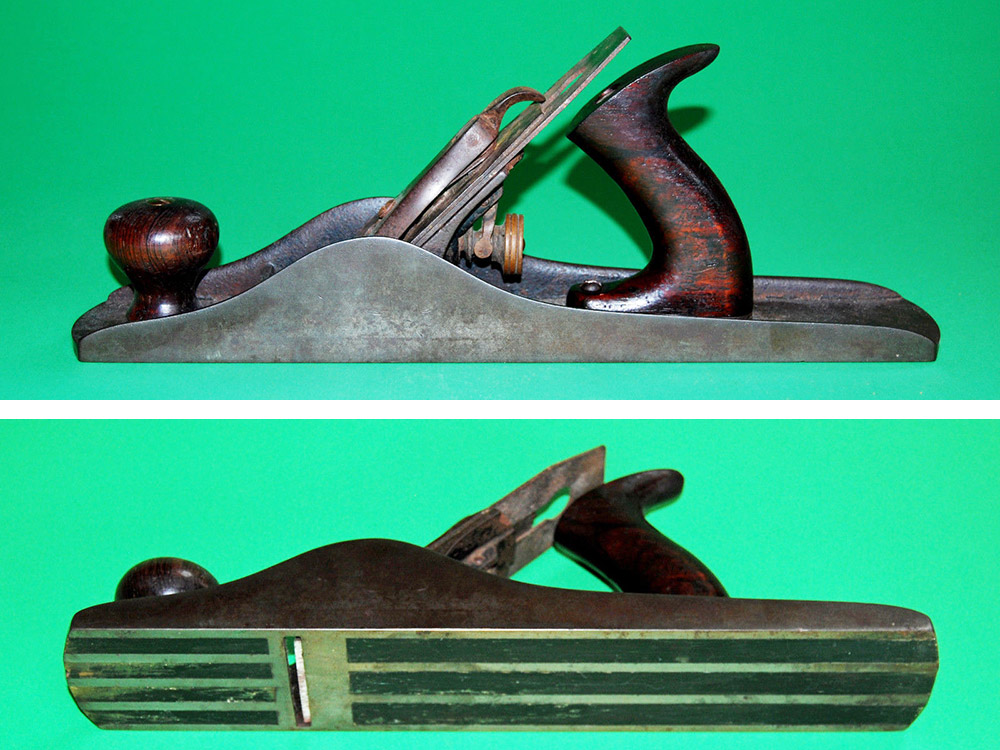

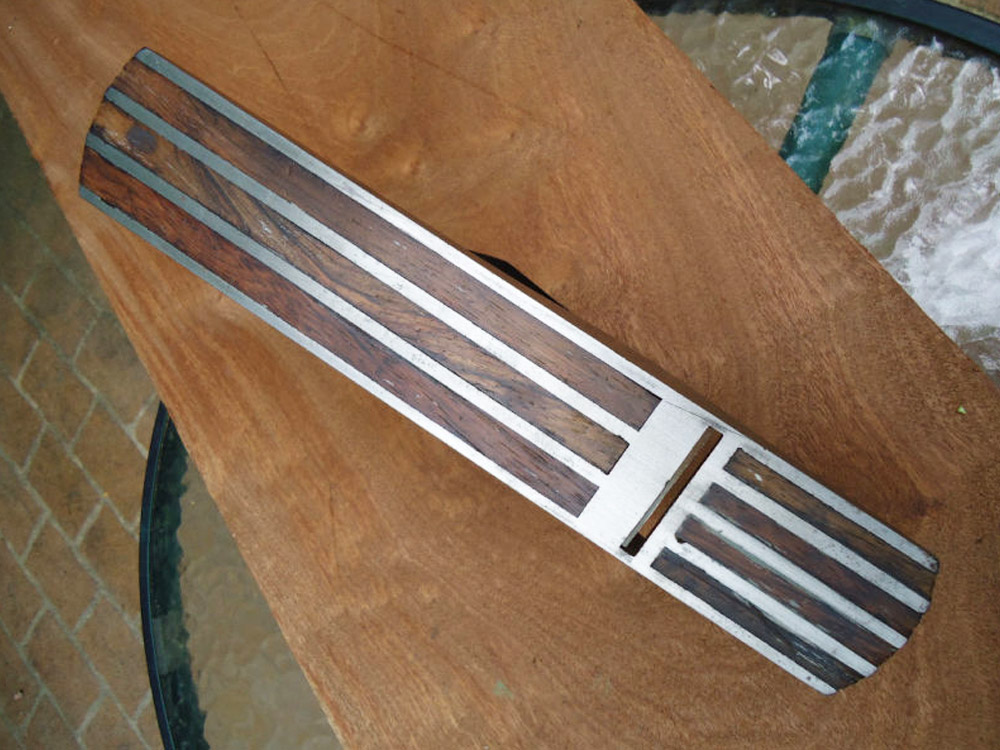

The bottom of the Plane is inlaid with Rosewood strips firmly and immovably dovetailed into the iron, and so combined as to prevent the wood from wearing away, giving the ease in working of a wood plane. while retaining all the advantages of the Iron Plane.
Note: The above information has been reproduced from an original catalog listing.
Specifications:
| Plane Type: | Jack Plane |

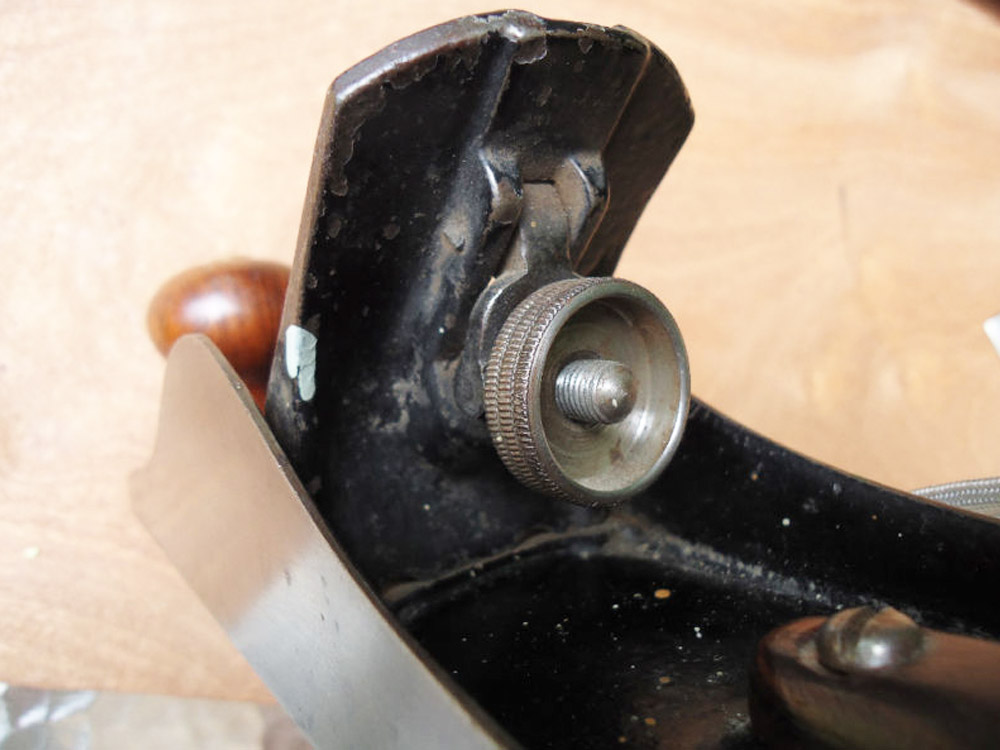

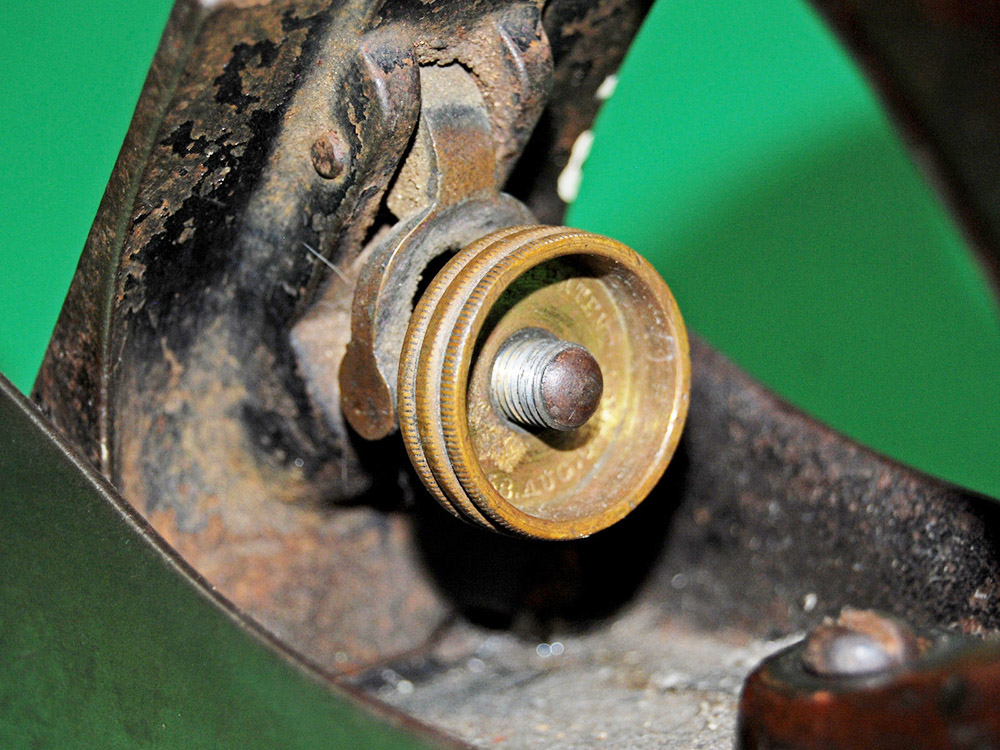

| Features: | Adjustable, with screw adjustment for cutter |
| Manufactured: | From 1889 to 1894 |
| Patents: | September 11, 1883 (composite bottom) (William Steers) |
| Length: | 14 inches |
| Cutter Width: | 2⅛ inches |

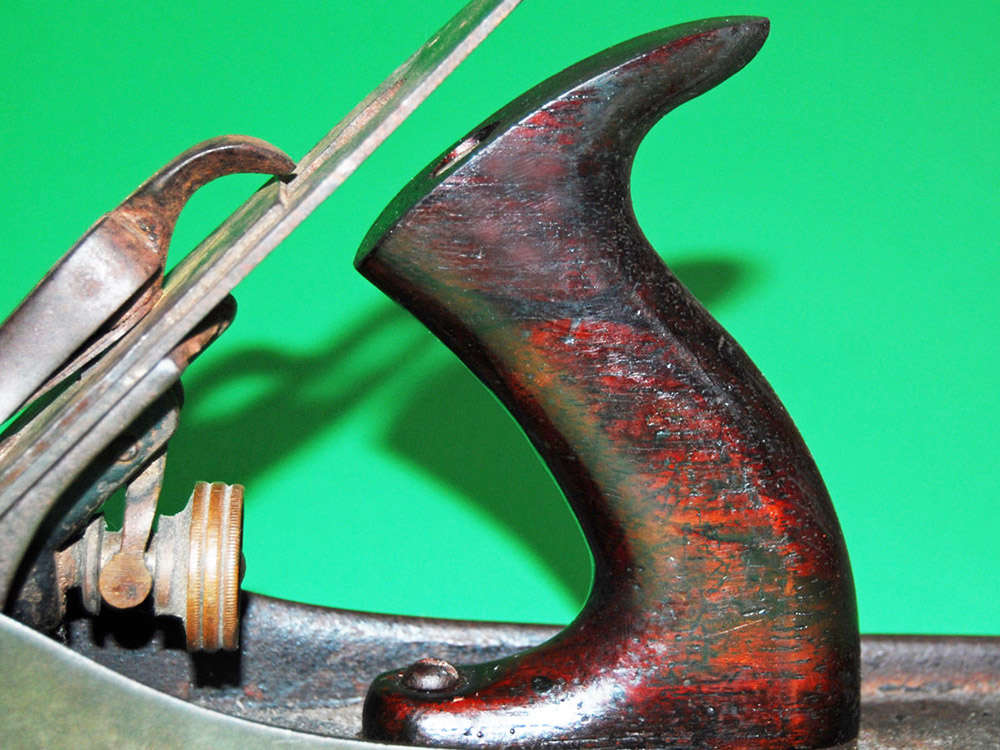

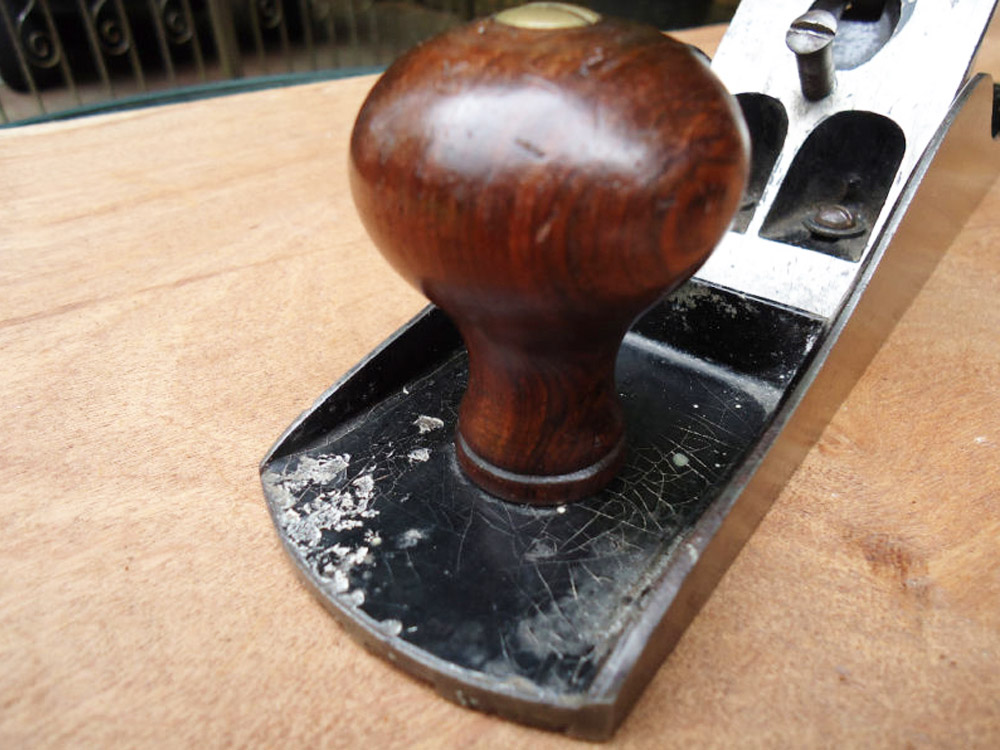

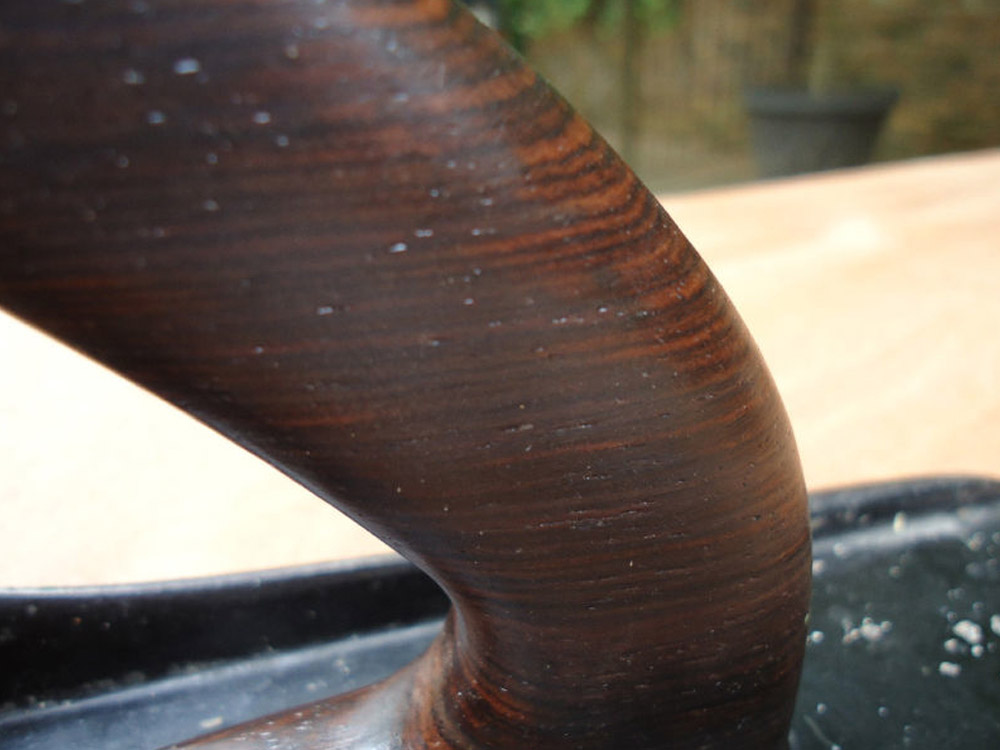

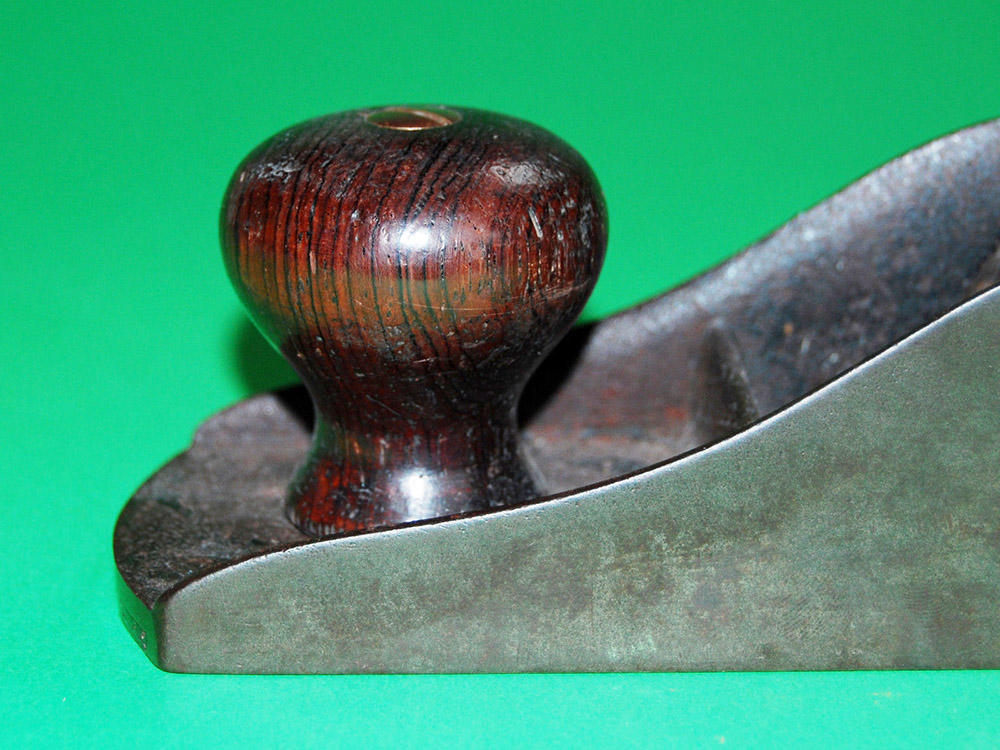

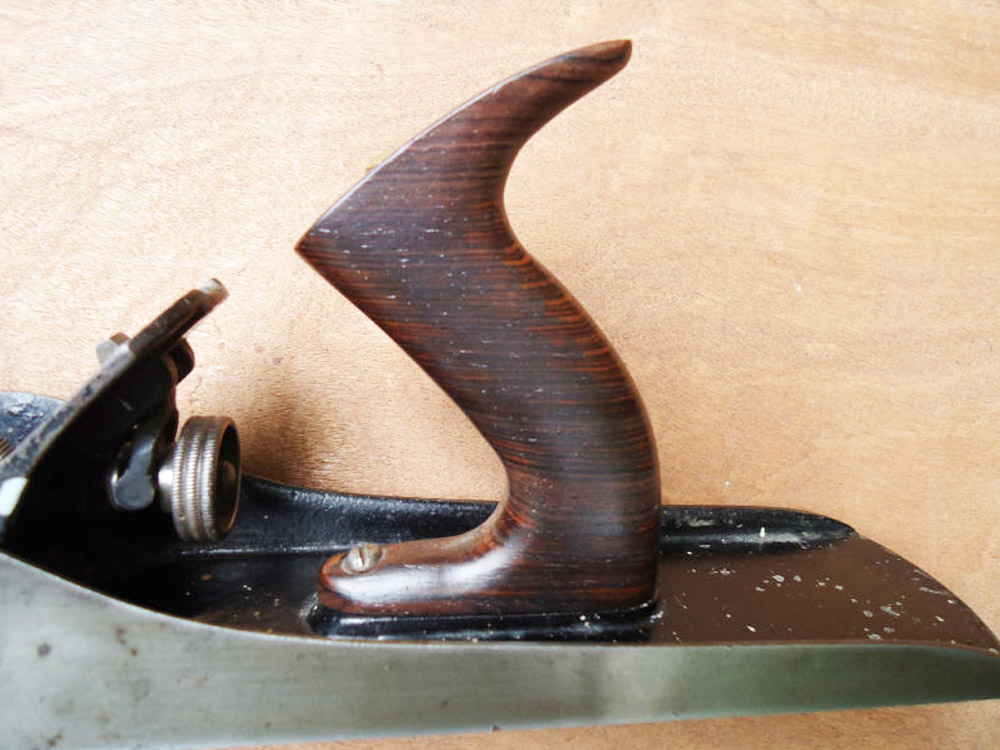

| Construction: | Cast iron body, Rosewood handle, knob & sole inlays |
| Finish: | Japanned |
| Price (1883): | $3.75 |
| Uses: | General purpose bench plane |
Please check the Value Guide For Steers Patent Planes page for relative prices.
Additional Notes:
